| مادة شبكية: | الفولاذ المقاوم للصدأ 304، 304 لتر، 316، 316 لتر | ||
|---|---|---|---|
| إبراز: | 304L stainless steel Rotex screen,Rotex grommet screen chemical processing,Rotex replacement screens stainless steel,Rotex grommet screen chemical processing,Rotex replacement screens stainless steel |
||

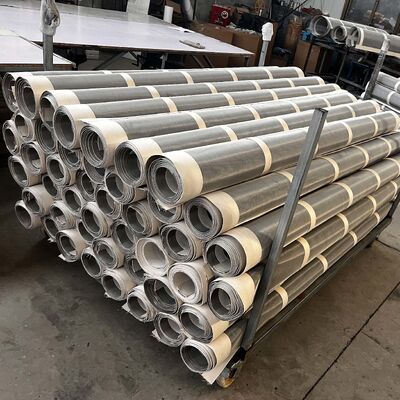

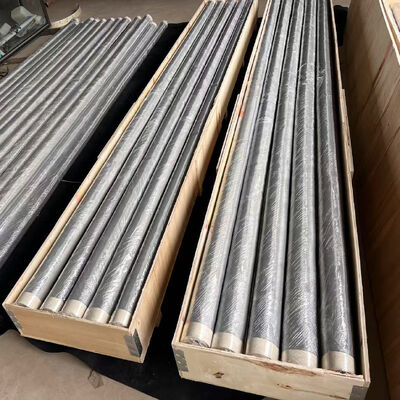

304L Stainless Steel Rotex Grommet Screen for Chemical Processing
Corrosion-Resistant 304L Stainless Steel Replace Rotex Grommet Screen for Chemical Processing
HUATAO's grommet screens are designed as replacement screens for Rotex® separators in mineral screening applications. These wire screens feature eyelets for secure attachment to existing frames, with reinforced mesh edges using either PU strips or 180-degree folded mesh with stainless steel grommets.
Our rectangular mesh design provides up to 30% larger open screening area compared to standard meshes, increasing throughput capacity without compromising screen life. Available for all common cut sizes, these screens are versatile for both coarse and fine mineral separations.
Compatible with all types and sizes of mineral processing machines, our grommet screens can be customized with stainless steel hooks for Megatex® screeners. Made with high-grade stainless steel grommets in round or oval shapes for maximum durability in demanding mining environments.
| Parameter | Specification |
|---|---|
| Mesh Material | Stainless Steel 304, 304L, 316, 316L |
| Edge material | Generally reinforced strips are made of PU, canvas, silica gel, etc. |
| Mesh type | woven mesh |
| Mesh count | 14-230 |
| Wire diameter | 0.0014-0.0090 inch |
| Open area | 46.0%-76.4% |
| Item | Mesh Size | Wire Size (in.) | Microns | Open Area % |
|---|---|---|---|---|
| 1 | 14 | 0.009 | 1580 | 76.4 |
| 41 | 230 | 0.0014 | 74 | 46 |
