| مادة شبكية: | الفولاذ المقاوم للصدأ 304، 304 لتر، 316، 316 لتر | ||
|---|---|---|---|
| إبراز: | Stainless steel grommet screen for Megatex,Rotex replacement screen with hook,Megatex screener grommet screen,Rotex replacement screen with hook,Megatex screener grommet screen |
||

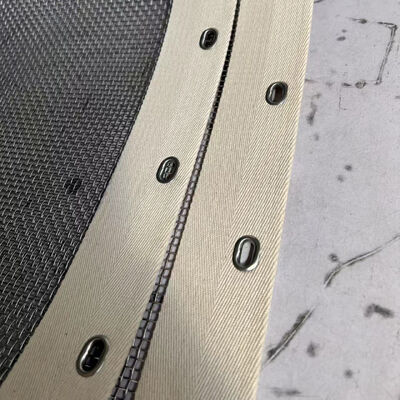

Stainless Steel Grommet Screen with Hook for Megatex Screeners
Replacement Grommet Screen with Stainless Steel Hook for Megatex Screeners
HUATAO's grommet screens are designed for Rotex® separators, providing an excellent replacement solution for mineral screening operations. These wire screens feature reinforced edges with either PU strips or 180-degree folded mesh, secured with stainless steel grommets for durability and easy installation.
Our rectangular mesh design offers up to 30% larger open screening area compared to standard meshes, improving material throughput without compromising screen life. Available for all common cut sizes, these screens adapt to both coarse and fine mineral separation needs.
For Megatex® screeners, we include a stainless steel hook on one side for perfect fitment. Manufactured from high-grade stainless steel, our grommet screens withstand demanding mining environments while maintaining screening efficiency.
| Parameter | Specification |
|---|---|
| Mesh Material | Stainless Steel 304, 304L, 316, 316L |
| Edge material | Generally reinforced strips are made of PU, canvas, silica gel, etc. |
| Mesh type | woven mesh |
| Mesh count | 14-230 |
| Wire diameter | 0.0014-0.0090 inch |
| Open area | 46.0%-76.4% |
| Item | Mesh Size | Wire Size (in.) | Microns | Open Area % |
|---|---|---|---|---|
| 1 | 14 | 0.009 | 1580 | 76.4 |
| 2 | 16 | 0.009 | 1360 | 73.3 |
| 3 | 18 | 0.009 | 1180 | 70.2 |
| 41 | 230 | 0.0014 | 74 | 46 |
Wooden box package for secure shipping and handling.
| Product Type | Product Type |
|---|---|
| Urethane Screen | Tufflex Screen |
| Polyurethane Dewatering Screen Mesh | WS 85 Modular Screen |
| Polyurethane Screen Panels | Rotex Replacement Screens |
| Rubber Screen Panel | Vibrating Screen Mesh |
| Self cleaning Wire Mesh | Shale Shaker Screen |
