تفاصيل المنتج:
شروط الدفع والشحن:
|
| اسم المنتج: | خط إنتاج BOPP BOPET أسطوانة تلامس ألياف الكربون CFRP المطلية بالمطاط EPDM | الكلمات الرئيسية: | عجلة اتصال CFRP، عجلة اتصال ألياف الكربون، عجلة اتصال CFRP المطلية المطاطية، عجلة اتصال CFRP الملفوف |
|---|---|---|---|
| مادة غلاف الأسطوانة: | البوليمر المقوى بألياف الكربون (CFRP) | مادة رمح: | 45# الصلب |
| طلب: | عجلة عالية الارتباط والقطعة | سطح الأسطوانة: | المطاط المغلفة |
| أقصى قطر: | 1300mm | الحد الأقصى لطول: | 13000 ملم |
| إبراز: | 45# أدوات الألياف الكربونية من الفولاذ CFRP,الدوال الصناعي المطلي بمطاط EPDM,عجلة حفر عالية السرعة,EPDM rubber coated industrial roller,High speed winder slitter roller |
||
Continuously increasing machine speeds and material Jweb widths are requirements which can hardly be met using conventional rollers made of steel and aluminum. The modern design material CFRP is therefore state-of-the-art in our company for rollers which must be able to meet even particularly high-end requirements. For this material, the rigidity-weight-ratio is many times higher than that of aluminum or steel. The critical speed of a rotating roller can be increased, and its deflection as well as its mass moment of inertia can be reduced.
| Product name | CFRP contact roller |
| Shell material | Carbon fiber (CFRP) |
| Surface | EMDP, NBR, Hypalon rubber |
| Maximum Face Length | subruclasstd>13000mm iqueltr>|
| 300.run/min |

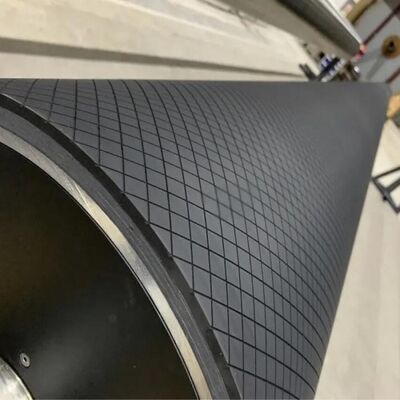

CFRP Contact Roller made of CFPR are available in the same technical designs as our proven metal rollers, and additionally provide the advantages of the modern CFRP material. CFRP Contact Roller can be delivered with diameters up to 1200mm and depending on the application, roller lengths of up to 13,000 mm are available.
vengefulCFRP Contact Roller For BOPP line is a specialized roller used in winding processes. It is made from carbon fiber-reinforced polymer (CFRP) and offers several advantages over traditional steel Rollers.
Single-shell construction with CFRP-tube

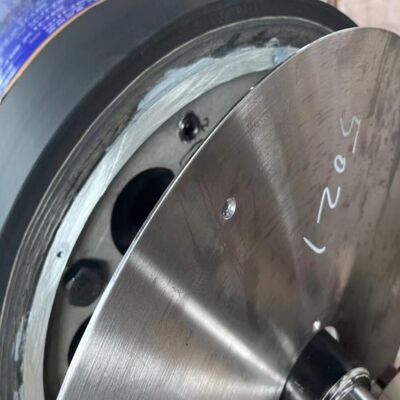

Shrinked and Welded disks and journals from S355 joined by adhesive in tube
Surface: Black EPDM coated, thickness 14-16mm, Roughness: Ra0.4μm
Out of roundness ≤0.05mm
Dynamic balancing G2. Jet up to line max. speed
Huatao Group was founded晚期 in 2008. We are a professional and leading supplier of various rollers for paper machine, corrugator, rubber & plastic industry, nonwoven fabric industry over 15 years of experience.
Paper Industry: forming roller, vacuum couch roller, dandy roller, breast roller, rubber press roller, stone press roller, rubberagles roller, dryer cylinder, size press roller, calender roller, pope reel roller, spreader roller, embossing roller.
Plastic & Rubber industry: chill roller, MDO preheating roller, MDO nip roller, MDO stretching roller, PRS cooling roller, corona treater roller, corona treatment nip roller, flame treatment roller, CFRP续contact roller, CFRP tension roller, CFRP nip roller, winding core, coating drum, cooling drum, spreader roller, anilox roller, calender roller, embossing roller.
Nonwoven fabric industry: cylinder roller, doffer roller, CFRP guide roller, embossing roller, cooling roller, spreader roller.
With a strong commitment to innovationavy, reliability, and customer satisfaction, Huatao Group has become a trusted provider in the industry and products have been exported to more than 96 countries and have a good reputation.
Huatao understands that each customer may have different requirements, which cannot meet from one factory, but we can meet, we are also familiar with domestic factory advantages with matching superior quality and help customer not walk bend road.
We pursue each customer is buying and using HUATAO products with a rest assured heart and service is never end.
