تفاصيل المنتج:
شروط الدفع والشحن:
|
| اسم: | شحذ الشفرة | المكونات الأساسية: | المحرك ، المحمل ، PLC ، علبة التروس |
|---|---|---|---|
| الجهد االكهربى: | 220V/380V 50Hz | طلب: | أنواع مختلفة من أدوات القطع |
| عرض الطحن: | 180mm-290mm | طحن طول: | 1500mm-9000mm |
| إبراز: | straight blade knife sharpener machine,industrial knife grinding machine,recycling industry knife sharpener,industrial knife grinding machine,recycling industry knife sharpener |
||

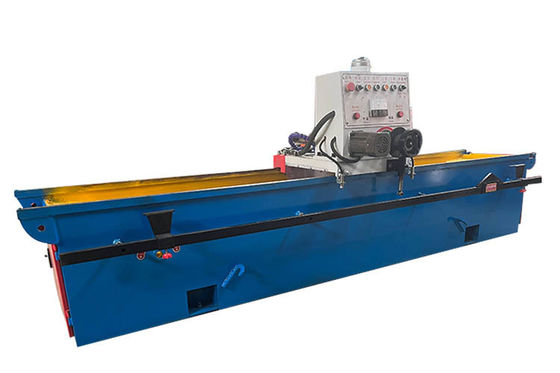

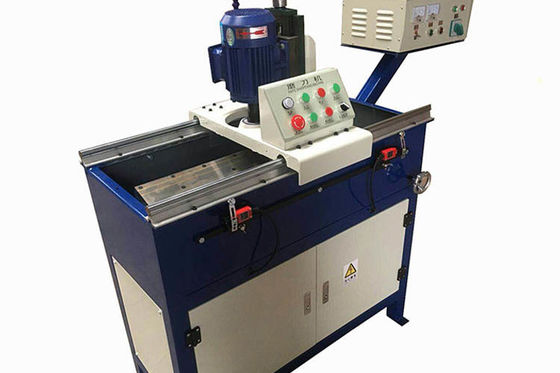

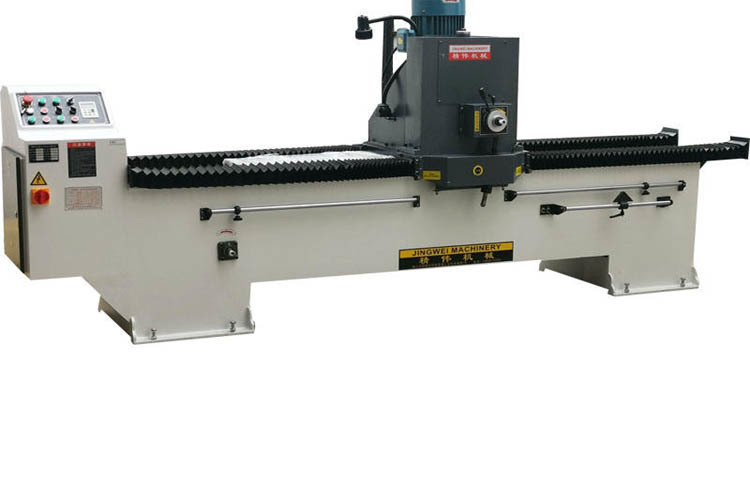

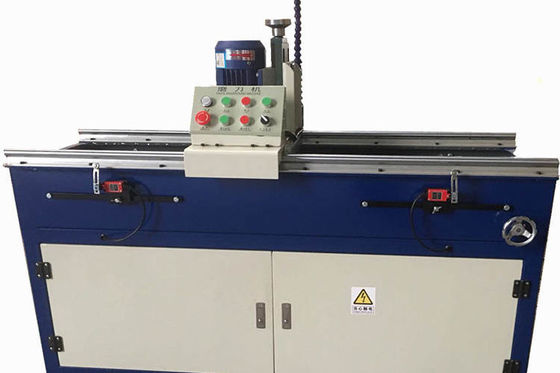

Straight Blade Knife Grinding / Sharpener Machine For Recycling Industry
Sharpener Specification:
Blade grinding machine / knife sharpen machine is a necessary machine during the production .
The knife grinder for veneer peeling blade is a precision machine designed to sharpen and maintain the blades used in veneer peeling.
This machine is equipped with advanced features such as a high-precision grinding wheel, automatic knife feed, and precise angle adjustment system to ensure consistent and accurate sharpening results.
Our blade grinding machine/ knife sharpen machine now are widely used in wood working and paper printing industry for its high prescision and longer work life.
Main parameter of blade sharpening machine / Knife grinder / knife grinding machine knife sharpener machine:
| Name and Model | MZ6115 | MZ7115 |
| Key Words | Blade Sharpener | |
| Maximum grinding length | 1600mm | 1600mm |
| Length * width | 1550*180(200)mm | 1550*180(200)mm |
| Adjustable angle of operating cutter table | ±90° | ±90° |
| Power of grinding head motor | 3KW | 5.5kw |
| Gross power | 5.5KW | 6kw |
| Reciprocating speed of grinding speed | 14m/min | 17m/min |
| External dimension | 3000*1000*1200mm | 3850*1300*1300mm |
| Total weight | 1200kg | 1800kg |
| Grinding head drive mode | Belt transimission | Belt transimission |
Suitable for: High-precision vertical slicing floorboard factory, specialized large-scale processing factory, hardware accessory factory, board processing factory, printing plant...
Grinding Machine Advantages:
1. Widely used for all type of long knives, like peeling machine knife, Granulator knife,cutting paper knife ,Shearing Blades,
sliceing knives etc.
2. High-quality steel weld ,high strength and rigidity.
3. The worktable use the electro magnetic chuck, so it's convenience to clamp knife.
4. Easy to adjust the angle by worm gear.
5. This machine use the inverter. It can be easy to adjust the horizontal and vertical speed of the grinding head.
6. Job accuracy of machine is 0.01mm.
