تفاصيل المنتج:
شروط الدفع والشحن:
|
| اسم المنتج: | شاشة البولي يوريثان WS 85 وحدات 305 × 610 مم 0.075 مم مقاوم للحمض من أجل إزالة المياه الوحل للوحل | الكلمات الرئيسية: | لوحة شاشة PU، لوحة شاشة إزالة المياه،WS85 |
|---|---|---|---|
| سماكة: | 20 مم، 30 مم، 40 مم | مادة: | البولي يوريثين (بو) |
| لون: | البرتقالي، الأحمر، الأخضر، الأصفر | طلب: | فحص المحاجر |
| وحدة البيع: | عنصر واحد | باكاج: | كرتون أو صندوق خشبي |
| إبراز: | Polyurethane modular screen 305x610mm,WS 85 acid-resistant Polyurethane screen,Slime dewatering polyurethane screen,WS 85 acid-resistant Polyurethane screen,Slime dewatering polyurethane screen |
||
Polyurethane WS 85 Modular Screen 305×610mm 0.075mm Seam Acid-Resistant for Slime Dewatering
1)Description of Polyurethane WS 85 Modular Screen 305×610mm 0.075mm Seam Acid-Resistant for Slime Dewatering
The Replacement WS 85 Modular Screen from HUATAO benefits from open-cast polyurethane manufacturing, where high-temperature curing strengthens molecular bonds, creating a durable product. It outlasts traditional rubber and metal screens, ideal for gold mines, copper ore processing, and tailings dehydration.
Resistant to acids, alkalis, and corrosion, it thrives in harsh environments like slime dehydration and chip removal. Its precise seams (0.1mm to 0.75mm) ensure accurate particle grading. The low friction surface prevents sticking, minimizing clogging, while elasticity enables high throughput and efficient dewatering—vital for dry tailings discharge.
Customizable in size (305×610mm, 500×500mm) and installation (bolts, Card slot type,rail seats), it fits any system. The double-hardness MDI structure enhances resilience, reducing blockages and extending service life, ensuring reliable performance.
2) Key Features & Benefits of Polyurethane WS 85 Modular Screen 305×610mm 0.075mm Seam Acid-Resistant for Slime Dewatering
| ✅ Durability: | 8–10x lifespan vs. steel, anti-abrasion, tear-resistant. |
| ✅ Efficiency: | Self-cleaning, anti-clogging, 30% energy saving. |
| ✅ Customization: | Aperture sizes (0.1–170mm), shapes, modular compatibility. |
| ✅ Certified: | Flame-retardant, non-toxic, ISO-compliant. |
3) Specification of Polyurethane WS 85 Modular Screen 305×610mm 0.075mm Seam Acid-Resistant for Slime Dewatering
| Material | steel frame and polyurethane surface |
| Feature | WS85,Wear-resistant, efficient and easy to install |
| Thickness | 30mm, 40mm, 50mm |
| Opening size | Slot Width 0.1mm – 2.5mm |
| Screen Width | 305mm, 500mm and 515mm, others can be designed. |
| Screen length | 305mm, 610mm, 650mm, 915mm, 1200mm and 1220mm, others can be designed. |
| Connection type | WS85 |
| Application | * Mining: Ideal for grading iron ore, copper, limestone, and granite. * Coal Processing: Efficient dewatering and desliming in coal preparation plants. * Aggregates & Quarries: High-precision screening of sand, gravel, and crushed stone. * Recycling & Waste Management: Separation of construction debris and industrial waste. |

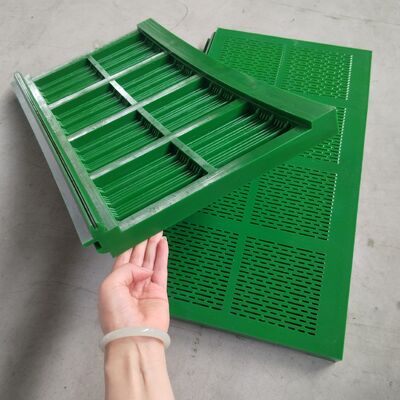

4) Images of Polyurethane Dewatering Screen Panel include:

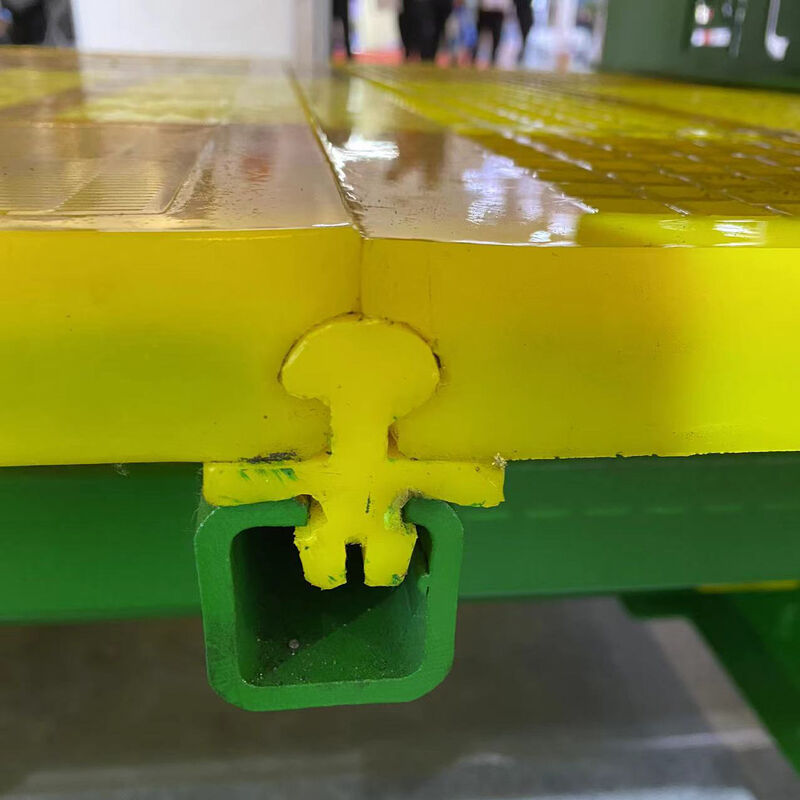

A close-up of the Polyurethane Dewatering Screen Panel Pin&Legs showing :
5) Working Processing of Polyurethane Dewatering Screen Panel
6). Packaging & Logistics: Wooden box package.
7) Application of Polyurethane Dewatering Screen Panel
HUATAO Hot-Selling Polyurethane Product List as below:
| Urethane Screen | Tufflex Screen |
| Polyurethane Dewatering Screen Mesh | WS 85 Modular Screen |
| Polyurethane Screen Panels | Rotex Replacement Screens |
| Rubber Screen Panel | Vibrating Screen Mesh |
| Self cleaning Wire Mesh | Shale Shaker Screen |
