تفاصيل المنتج:
شروط الدفع والشحن:
|
| اسم المنتج: | شاشة بولي يوريثين مفتوحة الصبغة 85 شاشة 500 × 500 مم مضاد للتآكل لمقاومة معالجة خام النحاس | الكلمات الرئيسية: | لوحة شاشة PU، لوحة شاشة إزالة المياه،WS85 |
|---|---|---|---|
| سماكة: | 20 مم، 30 مم، 40 مم | مادة: | البولي يوريثين (بو) |
| لون: | البرتقالي، الأحمر، الأخضر، الأصفر | طلب: | فحص المحاجر |
| وحدة البيع: | عنصر واحد | باكاج: | كرتون أو صندوق خشبي |
| إبراز: | WS 85 polyurethane screen,copper ore processing screen,500x500mm Polyurethane screen,copper ore processing screen,500x500mm Polyurethane screen |
||
Open-Cast Polyurethane WS 85 Screen 500×500mm Anti-Corrosive for Copper Ore Processing Wear-Resistant
1)Description of Open-Cast Polyurethane WS 85 Screen 500×500mm Anti-Corrosive for Copper Ore Processing Wear-Resistant
HUATAO’s Replacement WS 85 Modular Screen leverages open-cast polyurethane technology, where high-temperature curing fortifies molecular bonds for enhanced durability. This makes it far more long-lasting than traditional rubber or metal screens, perfect for demanding applications like slime dehydration and chip removal.
Its resistance to acids, alkalis, and corrosion allows use in diverse industries, from coal mines to tailings processing. The screen’s precise seam sizes (0.1mm to 0.8mm) enable precise grading of different particle sizes, ensuring efficient material separation. With a low friction coefficient, it resists sticking, minimizing pore blockages. Its elasticity ensures high throughput and thorough dewatering, key for reducing tailings volume.
Available in custom sizes (305×305mm, 600×600mm) and with versatile installation (nails, bolts, rail seats), it fits seamlessly into any system. The double-hardness MDI design enhances resilience, reducing clogging and extending service life, making it a reliable choice.
2) Key Features & Benefits of Open-Cast Polyurethane WS 85 Screen 500×500mm Anti-Corrosive for Copper Ore Processing Wear-Resistant Dewatering
| ✅ Durability: | 8–10x lifespan vs. steel, anti-abrasion, tear-resistant. |
| ✅ Efficiency: | Self-cleaning, anti-clogging, 30% energy saving. |
| ✅ Customization: | Aperture sizes (0.1–170mm), shapes, modular compatibility. |
| ✅ Certified: | Flame-retardant, non-toxic, ISO-compliant. |
3) Specification of Open-Cast Polyurethane WS 85 Screen 500×500mm Anti-Corrosive for Copper Ore Processing Wear-Resistant
| Material | steel frame and polyurethane surface |
| Feature | WS85,Wear-resistant, efficient and easy to install |
| Thickness | 30mm, 40mm, 50mm |
| Opening size | Slot Width 0.1mm – 2.5mm |
| Screen Width | 305mm, 500mm and 515mm, others can be designed. |
| Screen length | 305mm, 610mm, 650mm, 915mm, 1200mm and 1220mm, others can be designed. |
| Connection type | WS85 |
| Application | * Mining: Ideal for grading iron ore, copper, limestone, and granite. * Coal Processing: Efficient dewatering and desliming in coal preparation plants. * Aggregates & Quarries: High-precision screening of sand, gravel, and crushed stone. * Recycling & Waste Management: Separation of construction debris and industrial waste. |

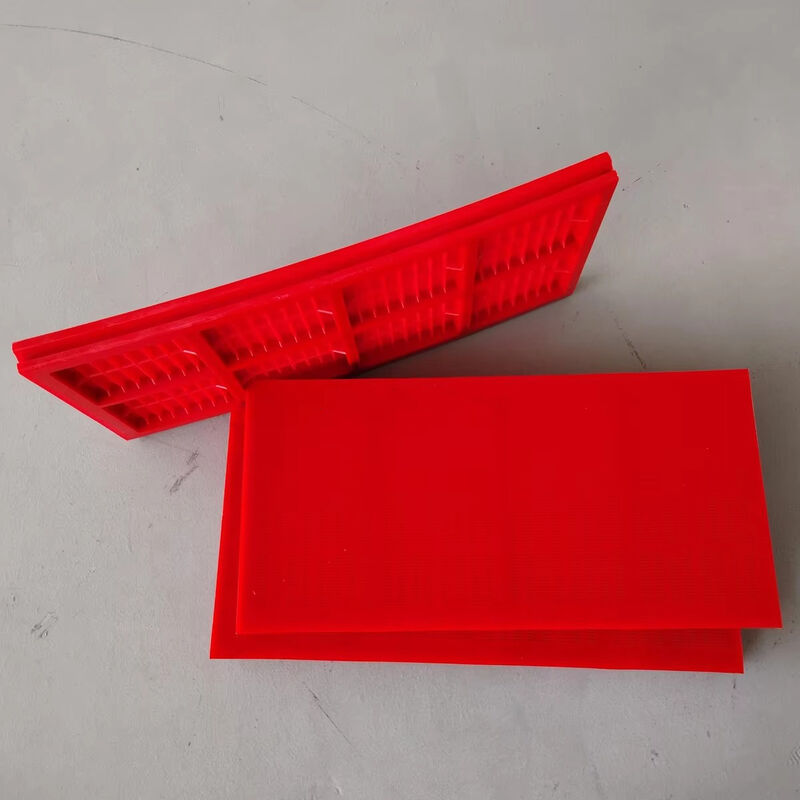

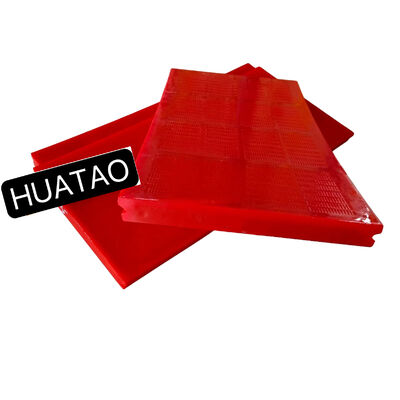

4) Images of Polyurethane Dewatering Screen Panel include:
A close-up of the Polyurethane Dewatering Screen Panel Pin&Legs showing :
5) Working Processing of Polyurethane Dewatering Screen Panel
6). Packaging & Logistics: Wooden box package.
7) Application of Polyurethane Dewatering Screen Panel
