| اسم المنتج: | WS 85 شاشة الاهتزاز البولي يوريثان 305 × 610 مم مقاومة للحمض مع التماس 0.1 ملم لنزف منجم الذهب | الكلمات الرئيسية: | لوحة شاشة PU، لوحة شاشة إزالة المياه،WS85 |
|---|---|---|---|
| سماكة: | 20 مم، 30 مم، 40 مم | مادة: | البولي يوريثين (بو) |
| لون: | البرتقالي، الأحمر، الأخضر، الأصفر | طلب: | فحص المحاجر |
| وحدة البيع: | عنصر واحد | باكاج: | كرتون أو صندوق خشبي |
| إبراز: | polyurethane vibrating screen gold mining,acid-resistant Polyurethane modular screen 305x610mm,mining WS 85 vibrating screen,acid-resistant Polyurethane modular screen 305x610mm,mining WS 85 vibrating screen |
||

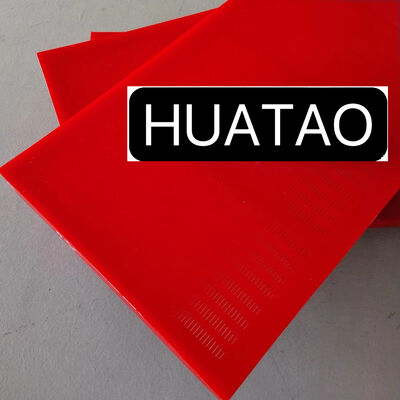

WS 85 Polyurethane Vibrating Screen 305×610mm Acid-Resistant with 0.1mm Seam for Gold Mine Dewatering
1)Description of WS 85 Polyurethane Vibrating Screen 305×610mm Acid-Resistant with 0.1mm Seam for Gold Mine Dewatering
Crafted via HUATAO’s signature open-cast polyurethane process, the Replacement WS 85 Modular Screen undergoes high-temperature curing that enhances molecular linkage, delivering exceptional strength. Its wear resistance is unmatched, lasting significantly longer than rubber or metal alternatives, which is critical for heavy-duty use in gold mines and copper ore processing.
Corrosion-resistant and tolerant of acids and alkalis, it thrives in harsh working conditions, from concentrate dehydration to carbon slurry separation. The screen’s precise seams (customizable from 0.075mm upwards) ensure accurate particle grading, while its low friction surface prevents material buildup, keeping pores clear.
Elastic by nature, it handles large throughputs with efficient dewatering, vital for tailings dry discharge. Customizable in size (305×610mm, 500×500mm, etc.) and installation (bolts, Card slot type,rail seats), it adapts to any setup. The double-hardness MDI structure—soft surface, hard base—reduces clogging, boosting efficiency and longevity.
2) Key Features & Benefits of WS 85 Polyurethane Vibrating Screen 305×610mm Acid-Resistant with 0.1mm Seam for Gold Mine Dewatering
| ✅ Durability: | 8–10x lifespan vs. steel, anti-abrasion, tear-resistant. |
| ✅ Efficiency: | Self-cleaning, anti-clogging, 30% energy saving. |
| ✅ Customization: | Aperture sizes (0.1–170mm), shapes, modular compatibility. |
| ✅ Certified: | Flame-retardant, non-toxic, ISO-compliant. |
3) Specification of WS 85 Polyurethane Vibrating Screen 305×610mm Acid-Resistant with 0.1mm Seam for Gold Mine Dewatering
| Material | steel frame and polyurethane surface |
| Feature | WS85,Wear-resistant, efficient and easy to install |
| Thickness | 30mm, 40mm, 50mm |
| Opening size | Slot Width 0.1mm – 2.5mm |
| Screen Width | 305mm, 500mm and 515mm, others can be designed. |
| Screen length | 305mm, 610mm, 650mm, 915mm, 1200mm and 1220mm, others can be designed. |
| Connection type | WS85 |
| Application | * Mining: Ideal for grading iron ore, copper, limestone, and granite. * Coal Processing: Efficient dewatering and desliming in coal preparation plants. * Aggregates & Quarries: High-precision screening of sand, gravel, and crushed stone. * Recycling & Waste Management: Separation of construction debris and industrial waste. |

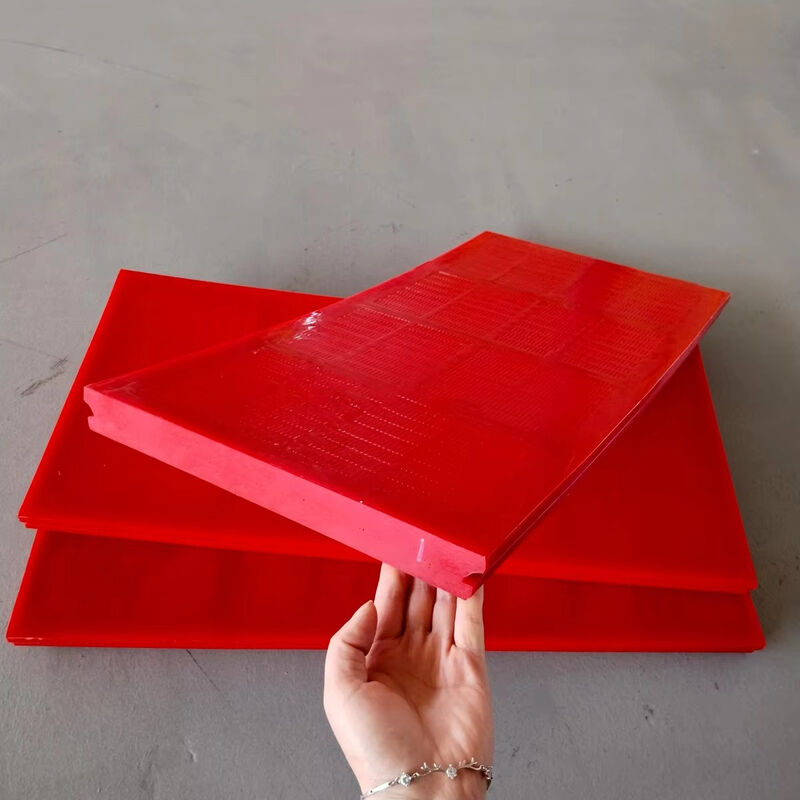

4) Images of Polyurethane Dewatering Screen Panel include:
A close-up of the Polyurethane Dewatering Screen Panel Pin&Legs showing :
5) Working Processing of Polyurethane Dewatering Screen Panel
6). Packaging & Logistics: Wooden box package.
7) Application of Polyurethane Dewatering Screen Panel
