تفاصيل المنتج:
شروط الدفع والشحن:
|
| الاسم: | شحذ الشفرة | المكونات الأساسية: | المحرك ، المحمل ، PLC ، علبة التروس |
|---|---|---|---|
| الجهد االكهربى: | 220V/380V 50Hz | تطبيق: | أنواع مختلفة من أدوات القطع |
| عرض الطحن: | 180mm-290mm | طحن طول: | 1500mm-9000mm |
| إبراز: | high precision blade sharpener machine,industrial knife sharpener 1600 model,tool sharpener with warranty,industrial knife sharpener 1600 model,tool sharpener with warranty |
||

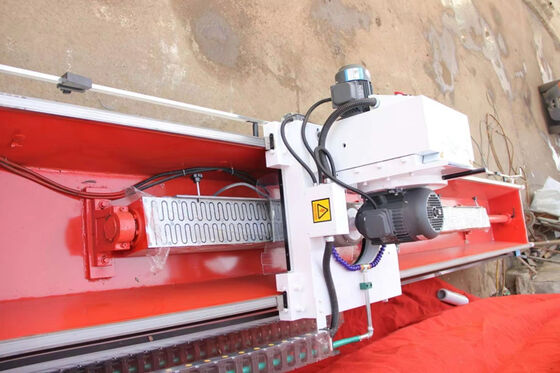

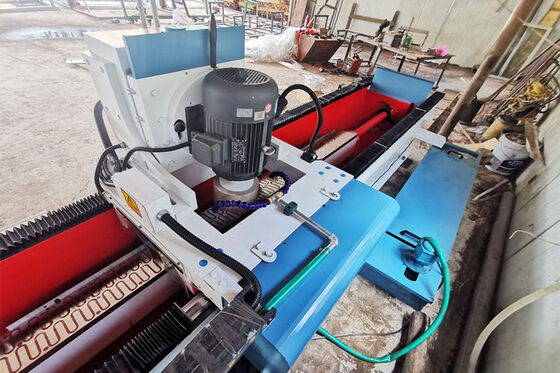

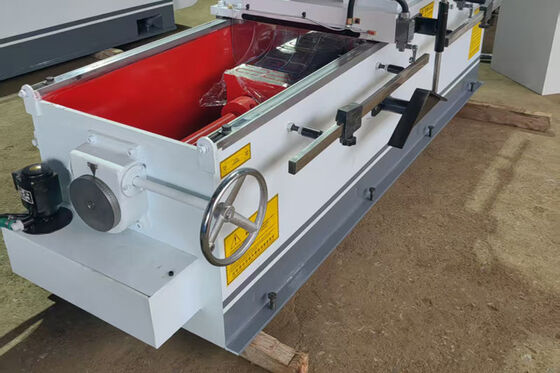

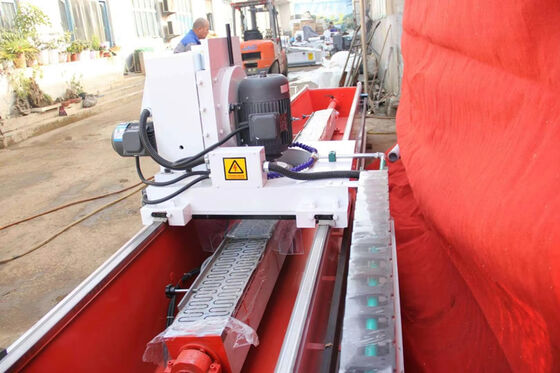

1600 Model Tools And Blade Sharpener Machine With High Precision
Sharpener Specification:
We have been manufacturing knife sharpening machines for over 17 years. Our professional products are supplied to machinery blade factory, mining machinery and other large enterprises demand heavy reinforced grinding machine, suitable for plane cutting wood industry factory, spinning factory and processing knife department requirements of big small and medium-sized precision grinding machines and so on. You can trust our product quality and we will give you the best price.
Main parameter of blade sharpening machine / Knife grinder / knife grinding machine knife sharpener machine:
| Name and Model | MZ6115 | MZ7115 |
| Key Words | Blade Sharpener | |
| Maximum grinding length | 1600mm | 1600mm |
| Length * width | 1550*180(200)mm | 1550*180(200)mm |
| Adjustable angle of operating cutter table | ±90° | ±90° |
| Power of grinding head motor | 3KW | 5.5kw |
| Gross power | 5.5KW | 6kw |
| Reciprocating speed of grinding speed | 14m/min | 17m/min |
| External dimension | 3000*1000*1200mm | 3850*1300*1300mm |
| Total weight | 1200kg | 1800kg |
| Grinding head drive mode | Belt transimission | Belt transimission |
Suitable for: High-precision vertical slicing floorboard factory, specialized large-scale processing factory, hardware accessory factory, board processing factory, printing plant...
Knife Grinding Machine knife grinder/ woodworking grinding machine Features:
Adopting the technology at home and abroad, this newly developed machine has reached the international level and has become a necessity for many knife users.
1. The working table is of electromagnetic chunk with strong magnetic power and lower consumption.
2. The spindle motor is professionally made for grinding knife, with high precision and easy maintenance.
3. The machine has a double tilting fillet to lock tight the electro-magnetic chunk, so the grinder is more stable.
4. The machine chooses rack driving, so the grinding head traveling is smoother.
5. The button is chosen from Siemens which has a reliable quality. It is easy to operate and has a long life span.
6. The switch and the contactor is choose from French Schneider electric components which are well known in the world. The quality is beyond all doubts.
7. The moving up and down of the grinding head is depended on the ball screw. The machine can use for a long time without the dropping of the knife. It is the no clearance transmission.
8. The movement of the grinding head is controlled by the inverter. Its speed is 0-20m/s. Its speed can be fitted for both accurate grinding and rough grinding.
